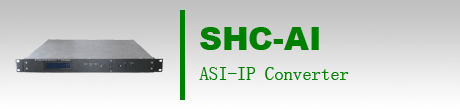

StreamHighway ASI-IP Converter |
StreamHighway ASI-IP
converter is a protocol converter compliant to MPEG-II/DVB and IEEE 802 standards.
It is used to convert singals bidirectionally between DVB-ASI data and
RTP/UDP-IP data.
|
Features |
·Support for converting DVB-ASI and RTP/UDP-IP signals
·bidirectional maximum bitrate up to 200Mb/s
·Supporting RTP/UDP unicasting and multicasting
·Supporting IGMP v1/v2 router protocol
·Supporting for demultiplexing input ASI data and distributing
to multi network address
|
Attributes |
|
Power Supply (V) |
AC 90 ～ 264 V，50 / 60 Hz |
Input Bit Rate (Mbps) |
0 ～ 216 |
Input Packet Size |
188 / 204 |
ASI Input Level (mV) |
200 ~ 880 |
ASI Input Impendence (Ω) |
75 |
ASI Input Rate |
270 Mbaud ± 50 ppm |
Output Bit Rate (Mbps) |
0 ～ 216 |
Output Packet Size |
188 / 204 |
ASI Output Level (mV) |
800 mV ± 10% |
Output Impendence (Ω) |
75 |
Ethernet Interface |
RJ-45 10/100/1000 Base-T |
|
| |
