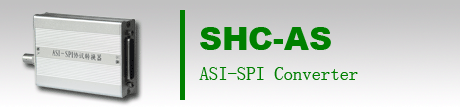

StreamHighway ASI-SPI Protocol Converter |
StreamHighway ASI-SPI protocol
converter is used to convert ASI signals into SPI signals.
It is an assistant device of DTV headend.
|
Features |
·DVB compliant
·0~216Mb/s input/output
bitrate
·Supporting ASI burst and
non-burst mode
·Support for
MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·On-board equalizer to
ensure low bit error rate in long distant transmission
|
Attributes |
|
Power Supply (V) |
5V ± 10% |
Input Bit Rate (Mbps) |
0 ～ 216 |
Input Packet Size |
188 / 204 |
Input Level (mV) |
200 ~ 880 |
Input Impendence (Ω) |
75 |
ASI Input Rate |
270 Mbaud ± 50 ppm |
Output Bit Rate (Mbps) |
0 ～ 216 |
Output Packet Size |
188 / 204 |
Output Level (mV) |
350 ± 100 |
Output Common Voltage (V) |
1.25 ± 10% |
Output Impendence (Ω) |
100 |
|
| |
