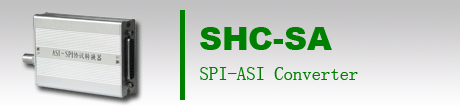

StreamHighway SPI-ASI Protocol Converter |
StreamHighway SPI-ASI protocol
converter is used to convert SPI signals into ASI signals.
It is an assistant device of DTV headend.
|
Features |
·DVB compliant
·0~216Mb/s input/output
bitrate
·Supporting ASI burst and
non-burst mode
·Support for
MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·On-board equalizer to
ensure low bit error rate in long distant transmission
|
Attributes |
|
Power Supply (V) |
5V ± 10% |
Input Bit Rate (Mbps) |
0 ～ 216 |
Input Packet Size |
188 / 204 |
Input Level (mV) |
100 ~ 650 |
Input Common Voltage (V) |
0 ~ 2.0 |
Input Impendence (Ω) |
100 |
Output Bit Rate (Mbps) |
0 ～ 216 |
Output Packet Size |
188 / 204 |
Output Level (mV) |
800 ± 10% |
Output Impendence (Ω) |
75 |
Output Jitter |
< 10% |
Output Random Jitter |
< 8% |
Rise/Fall Time (ns) |
< 1.2 |
ASI Output Rate |
270 Mbaud ± 50 ppm |
|
| |
