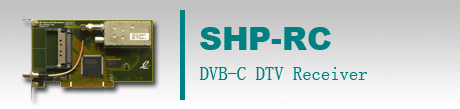

StreamHighway DVB-C DTV Receiver

StreamHighway DVB-C DTV Receiver is a PCI V2.2 adapter card compliant to MPEG-II/DVB Standards. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices. It is used to record stream data from cable networks on computer disks. It can be used for DVB-C stream recorders.

Features

·PCI rev2.2 compliant adapter for both 3.3V and 5V environments
·Cable RF input
·RF range from 55MHz to 860MHz
·Constellation: 16/32/64/128/256QAM
·Optional 8192 PID Filtering
·Support for DVB-CI compliant PC card
·Providing API functions

Operating Systems

·Microsoft Windows 98/ME、NT4.0、2000、2003、XP、Vista、Windows 7、Linux

Development Platforms

·Microsoft Platform SDK、Microsoft Visual C++、Borland Delphi、Borland C++ Builder、GNU GCC（Linux）

Applications

·Streamhighway TS B&R Platform
·Stream analysis device
·Stream monitoring device
·Stream Recording device
·Other DVB device

Attributes

 PCI Compliance

 PCI 32 bit / 33 MHz / 5V
 PCI 32 bit / 33 MHz / 3.3V
 PCI 32 bit / 66 MHz / 3.3V
 PCI 64 bit / PCI-X

 On-board Buffer (MByte)

 4

 Constellation

 16 / 32 / 64 / 128 / 256QAM

 Input Symbol Rate (MBaud)

 0.87 ～ 6.9

 Input Frequency (MHz)

 51 ～ 157 / 164 ～ 442 / 450 ～ 858

 Input Level (dBuV)

 40 ～ 80

 Input Impendence (Ω)

 75

 Input Bandwidth (M)

 8
