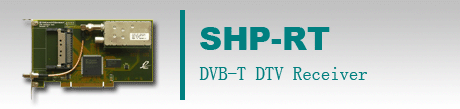

StreamHighway DVB-T DTV Receiver

StreamHighway DVB-T DTV Receiver is a PCI V2.2 adapter card compliant to MPEG-II/DVB Standards. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices. It is used to record stream data from terrestrial networks on computer disks. It can be used for DVB-T stream recorders.

Features

·PCI rev2.2 compliant adapter for both 3.3V and 5V environments
·terrestrial RF input
·RF range from 174MHz to 230MHz and 470MHz~862MHz
·Constellation: QPSK, 16QAM, 64QAM
·Optional 8192 PID Filtering
·Support for DVB-CI compliant PC card
·Providing API functions

Operating Systems

·Microsoft Windows 98/ME、NT4.0、2000、2003、XP、Vista、Windows 7、Linux

Development Platforms

·Microsoft Platform SDK、Microsoft Visual C++、Borland Delphi、Borland C++ Builder、GNU GCC（Linux）

Applications

·Streamhighway TS B&R Platform
·Stream analysis device
·Stream monitoring device
·Stream Recording device
·Other DVB device
