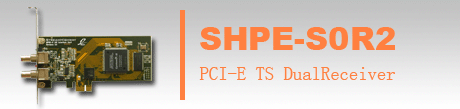

StreamHighway PCI-E TS DualReceiver

StreamHighway TS DualReceiver is a PCI Express V1.0a adapter card compliant to MPEG-II/DVB Standards. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices.It can record two independent transport streams synchronously. It can be used for DTV transport-stream recorders.

Features

·PCI Express V1.0a compliant adapter for both 3.3V and 5V environments
·Two independent ASI input
·216Mb/s maximum input bitrate
·8 bps bit rate resolution
·16M on-board high-speed buffer
·Support for MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·Providing API functions

Operating Systems

·Microsoft Windows 98/ME、NT4.0、2000、2003、XP、Vista、Windows 7、Linux

Development Platforms

·Microsoft Platform SDK、Microsoft Visual C++、Borland Delphi、Borland C++ Builder、GNU GCC（Linux）

Applications

·Streamhighway TS B&R Platform
·DTV producing and testing device
·Data broadcasting server
·Video server
·DVB gateway
·DTV signal generator
·EPG server
·Non-linear editing device
·Stream analysis device
·Stream monitoring device
·DTV signal generator
·Program Inserting device
·Other DVB device

Attributes
