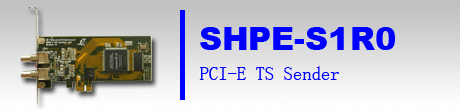

StreamHighway PCI-E TS Sender

StreamHighway PCI-E TS Sender is a PCI Express V1.0a adapter card compliant to MPEG-II/DVB Standards. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices. It is used to output transport stream data that stored in computers in the setting bit rate. It can be used for a DTV transport-stream generator.

Features

·PCI Express V1.0a compliant adapter for both 3.3V and 5V environments
·Two ASI output
·216Mb/s maximum output bitrate
·8 bps bit rate resolution
·16M on-board high-speed buffer
·Support for MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·Providing API functions

Operating Systems

·Microsoft Windows 98/ME、NT4.0、2000、2003、XP、Vista、Windows 7、Linux

Development Platforms

·Microsoft Platform SDK、Microsoft Visual C++、Borland Delphi、Borland C++ Builder、GNU GCC（Linux）

Applications

·Streamhighway TS B&R Platform
·DTV producing and testing device
·Data broadcasting server
·Video server
·DVB gateway
·DTV signal generator
·EPG server
·Non-linear editing device
·Stream analysis device
·Stream monitoring device
·DTV signal generator
·Program Inserting device
·Other DVB device

Attributes

 PCI Compliance

 PCI Express

 On-board Buffer (MByte)

 16

 Transmit Bit Rate (Mbps)

 0 ～ 216

 Packet Size

 188 / 204

 Bit Rate Resolution (bps)

 8

 Output Level  (mV)

 800 ± 10%

 Output Impendence (Ω)

 75

 Output Jitter

 < 10%

 Output Random Jitter

 < 8%

 Rise/Fall Time (ns)

 < 1.2

 ASI Output Rate

 270 Mbaud ± 50 ppm
