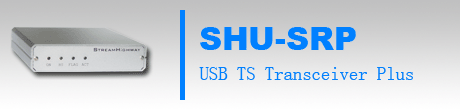

StreamHighway USB TS Transceiver Plus |
StreamHighway USB TS
Transceiver Plus is a USB 2.0 adapter card compliant to MPEG-II/DVB
Standards. It provides the whole API functions and it's a
perfect platform of hardware development of DTV devices. It can output and record
transport stream data synchronously. It can be used for
portable DTV transport-stream generators and recorders.
|
Features |
·USB 2.0 compliant
·One ASI input and One ASI output
·216Mb/s maximum input bitrate
·216Mb/s maximum output
bitrate
·8 bps bit rate resolution
·16M on-board high-speed
buffer
·Support for
MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·Providing API functions
|
Operating Systems |
·Microsoft Windows
98/ME、NT4.0、2003、XP、Vista、Windows 7 |
Development Platforms |
·Microsoft Platform
SDK、Microsoft Visual C++、Borland Delphi、Borland C++
Builder
|
Applications |
·Streamhighway TS B&R
Platform
·DTV producing and testing
device
·Data broadcasting server
·Video server
·DVB gateway
·DTV signal generator
·EPG server
·Non-linear editing device
·Stream analysis device
·Stream monitoring device
·DTV signal generator
·Program Inserting device
·Other DVB device
|
Attributes |
|
USB Compliance |
USB 2.0
|
On-board Buffer (MByte) |
16 |
Transmit Bit Rate (Mbps) |
0 ～ 216 |
Output Packet Size |
188 / 204 |
Output Bit Rate Resolution (bps) |
8 |
Output Level (mV) |
800 ± 10% |
Output Impendence (Ω) |
75 |
Output Jitter |
< 10% |
Output Random Jitter |
< 8% |
Rise/Fall Time (ns) |
< 1.2 |
ASI Output Rate |
270 Mbaud ± 50 ppm |
Input Bit Rate (Mbps) |
0 ～ 216 |
Input Packet Size |
188 / 204 |
Input Bit Rate Resolution (bps) |
8 |
Input Level (mV) |
200 ~ 880 |
Input Impendence (Ω) |
75 |
ASI Input Rate |
270 Mbaud ± 50 ppm |
|
| |
