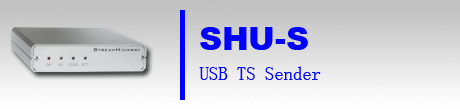

StreamHighway USB TS Sender

StreamHighway USB TS Sender is a USB 2.0 adapter card compliant to MPEG-II/DVB Standards. It provides the whole API functions and it's a perfect platform of hardware development of DTV devices. It is used to output transport stream data that stored in computers in the setting bit rate. It can be used for portable DTV transport-stream generators.

Features

·USB 2.0 compliant
·One ASI output
·216Mb/s maximum output bitrate
·8 bps bit rate resolution
·16M on-board high-speed buffer
·Support for MEPG-II/DVB/ATSC 188-byte and 204-byte packets
·Providing API functions

Operating Systems

·Microsoft Windows 98/ME、NT4.0、2000、2003、XP、Vista、Windows 7

Development Platforms

·Microsoft Platform SDK、Microsoft Visual C++、Borland Delphi、Borland C++ Builder

Applications

·Streamhighway TS B&R Platform
·DTV producing and testing device
·Data broadcasting server
·Video server
·DVB gateway
·DTV signal generator
·EPG server
·Non-linear editing device
·Stream analysis device
·Stream monitoring device
·DTV signal generator
·Program Inserting device
·Other DVB device

Attributes

 USB Compliance

 USB 2.0

 On-board Buffer (MByte)

 16

 Transmit Bit Rate (Mbps)

 0 ～ 216

 Packet Size

 188 / 204

 Bit Rate Resolution (bps)

 8

 Output Level  (mV)

 800 ± 10%

 Output Impendence (Ω)

 75

 Output Jitter

 < 10%

 Output Random Jitter

 < 8%

 Rise/Fall Time (ns)

 < 1.2

 ASI Output Rate

 270 Mbaud ± 50 ppm
